UNAI Product

BLE-RSSI


  • Error < 5m
  • WIFI 2.4Ghz(WPA2)/Cellular 3G-4G
  • Anchor + Tag
  • RTLS software support

Contact us

BLE-AOA

  • Error < 2m
  • WIFI 2.4Ghz(WPA2)
  • Anchor + Tag
  • RTLS software support
Contact us

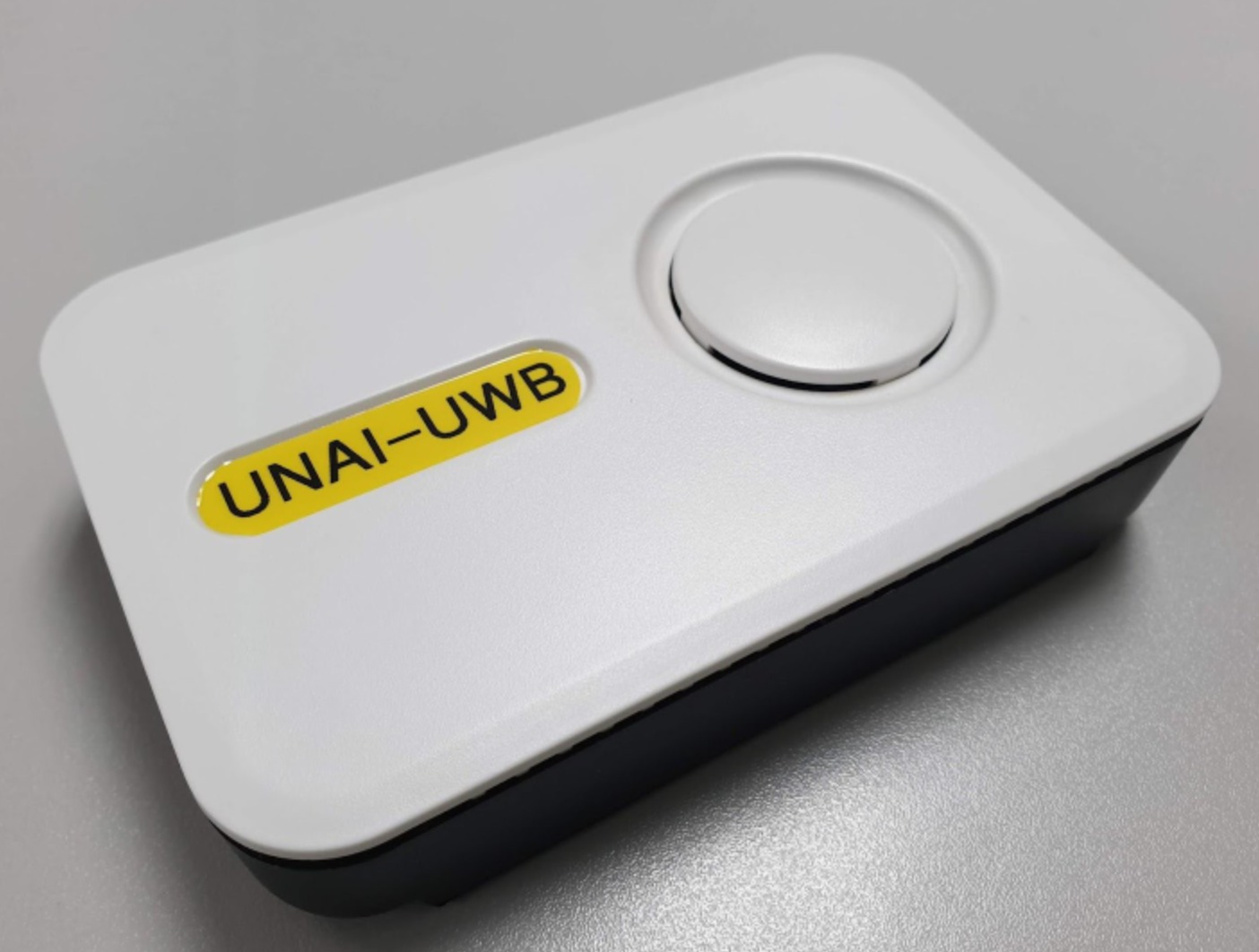

UWB-TWR



  • Error < 30cm
  • WIFI 2.4-5Ghz(WPA2)/Cellular 3G-5G
  • Anchor + Tag + Gateway
  • RTLS software support
Contact us

UWB-TDOA(Developing)


  • Error < 50cm
  • WIFI 2.4-5Ghz(WPA2)/Cellular 3G-5G
  • Anchor + Tag
  • Developing
Contact us

Specification sheet

BLE-RSSI


  • Hardware
    (Anchor)
    		 Version


    		3
    Wifi 2.4 GHz ~ 15 m (indoor)
    Bluetooth bluetooth 4.2, 2.4 GHz ~ 20 m (indoor)
    3G+4G 3G(850,2100MHz) and 4G(1800,2100MHz)
    Sensor Temperater(-40C to 90C, +-0.3), Humidity(0% - 100%, +-2)
    Size 125 x 175 x 28 mm
    Firmware V1.2(Bluetooth), OpenWRT V18.04 Software node V2.08
    Transmission power range -40dBm to +4dBm
    Input 5V DC
    Adapter Input 220V AC, Output 5V DC, 2.1 A
    Standard IEC 60950-1 (Safety), CISPR 22 (CE,RE),
    CISPR 24 (RI,ESD,PFM),
    Environment test 50C 90%RH (5 Hours)
    Firmware update JLINK, USB, OTA v1
    Waterproof -
  • Hardware (Tag)
    (NECTEC)

    Hardware
    (Tag)
    (NECTEC)
    		 Version 1
    Bluetooth Version bluetooth 4.2(NRF52832)
    Batterry Litfetime > 5 year (CR2450)
    Battery Replaceable Yes
    Waterproof IP66
    Size 39*38*8 mm
    Advertising 100 - 5000 mS
    Time Sleep 1 sec - 4 hr
    Transmission power range -40dBm to +4dBm
    Power on sleep mode <4 uA
    Power on advertising mode <20 mA
    Measured power
    (RSSI@1M)    		 -59 dBm
    Operating Temperature -25 to +60 C
    Material and Color ABS and white
    OTA Yes
  • Hardware(Tag)
    (MOKO Company)

    Hardware
    (Tag)
    (MOKO Company)
    		 Bluetooth Version bluetooth 4.0
    Size 85.59 x 54.13 x 4 mm
    Advertising 100 - 5000 mS
    Batterry Litfetime Up to 2 years battery lifetime
    OTA Yes
    Transmission power range -40dBm to +4dBm
    Operating Temperature -25 to +75ºC
    Weight 18g
  • Hardware(Tag)
    (Minew Company)


    Hardware
    (Tag)
    (Minew Company)
    		 Bluetooth Version 4.0
    Size 32x23x 3.3 mm
    Advertising 100ms to 10s
    Batterry Litfetime 3 months CR2016 (90mAh ) Replaceable,Yes
    OTA No
    Transmission power range -30dBm to 4dBm
    Operating Temperature
    Weight 4.0

BLE-AOA


  		•
    Hardware
    (Anchor)
    		 Version
    Wifi 2.4 GHz, 5 GHz
    Bluetooth Bluetooth 5.1, 2.4 GHz
    Point to Point range up to 50 m in Line-of-Sight conditions
    Size 19.5 x 25.5 x 5 cm
    Firmware Bluetooth SDK v3.2
    Input 5 V
    Adapter 5.1 V, 3 A
    Standard
    Firmware update USB
  • Hardware
    (Tag)
    		 Version
    Bluetooth Version Bluetooth 5.1, 2.4 GHz
    Battery Litfetime ~ 200 days (CR2032)
    Battery Replaceable Yes
    Size 7.2 x 3.8 x 1.9 mm
    Advertising 500 mS
    Transmission power 6 dBm
    Power on sleep mode 8 uA
    Power on advertising mode 50 uA
    Measured power
    (RSSI@1M)    		 -40 dBm
    Material and Color ABS and white

UWB-TWR
  • Hardware
    (Anchor & Tag)
    		 Version 1.0
    Ranging accuracy <= 10 cm
    Frequency 2.4GHz and 6.5 GHz
    Point to Point range up to 60 m in Line-of-Sight conditions
    RTLS scheme range 25 to 30 meters between anchors (4+) and tags
    Data rate 6.8 Mbps data rate IEEE 802.15.4-2011 UWB compliant
    Bluetooth bluetooth 4.2, 2.4 GHz ~ 15 m (indoor)
    3G+4G *Optional
    Sensor Motion sensor: 3-axis accelerometer
    Size 19.125 mm x 26.125 mm x 2.6 mm
    Input 5V
    Adapter 5V, 2.1 A
    Power on sleep mode <5μA
    Standard DWM1001C are certified to ETSI, FCC and ISED regulations, FCC ID: 2AQ33-DWM1001, IC: 23794-DWM1001
    Firmware update JLINK
  • Hardware
    (Anchor & Tag)
    		 Version NECTEC 1.0
    Ranging accuracy <= xx cm
    Frequency 2.4GHz and 6.5 GHz
    Point to Point range up to 60 m in Line-of-Sight conditions
    RTLS scheme range 25 to 30 meters between anchors (4+) and tags, Suport TDOA&TWR
    Data rate 6.8 Mbps data rate IEEE 802.15.4-2011 UWB compliant
    Bluetooth bluetooth 4.2, 2.4 GHz ~ 15 m (indoor)
    3G+4G **3G(850,2100MHz) and 4G(1800,2100MHz)
    Connect Network **support WIFI 2.4GHz and PoE(only power)
    Connect Device **RaspberryPi GPIO Connector and Temperture Sensor DHT22 GPIO connecter
    Sensor **Motion sensor: 3-axis accelerometer
    Size 9 x 14 x 2.9 cm.
    Input 5V
    Adapter 5V, 2.1 A
    Power on sleep mode <5μA
    Standard DWM1001C are certified to ETSI, FCC and ISED regulations, FCC ID: 2AQ33-DWM1001, IC: 23794-DWM1001
    Firmware update JLINK

  • Hardware
    (Tag)
    		 Version NECTEC 1.0
    Ranging accuracy <= xx cm
    Frequency 2.4GHz and 6.5 GHz
    Point to Point range up to 60 m in Line-of-Sight conditions
    RTLS scheme range 25 to 30 meters between anchors (4+) and tags, Suport TDOA&TWR
    Data rate 6.8 Mbps data rate IEEE 802.15.4-2011 UWB compliant
    Bluetooth bluetooth 4.2, 2.4 GHz ~ 15 m (indoor)
    Sensor **Accelerometers LIS3DHTR, IMU 9Axis, BAROMETER
    Size 4.5 x 5.5 x 1.5 cm.
    Input Wireless Charger, Battery 3.7 V. 600 mA
    Power on sleep mode <5μA
    Standard DWM1001C are certified to ETSI, FCC and ISED regulations, FCC ID: 2AQ33-DWM1001, IC: 23794-DWM1001
    Firmware update JLINK
  • Hardware
    (Listener)
    		 Version 1.0
    Ranging accuracy <= 10 cm
    Frequency 2.4GHz and 6.5 GHz
    Data rate 6.8 Mbps data rate IEEE 802.15.4-2011 UWB compliant
    Bluetooth bluetooth 4.2, 2.4 GHz ~ 15 m (indoor)
    3G+4G *Optional
    Sensor Motion sensor: 3-axis accelerometer
    Size 19.125 mm x 26.125 mm x 2.6 mm
    Input 5V
    Adapter 5V, 2.1 A
    Power on sleep mode <5μA
    Standard DWM1001C are certified to ETSI, FCC and ISED regulations, FCC ID: 2AQ33-DWM1001, IC: 23794-DWM1001
    Firmware update JLINK
